Chicago Brick Oven 500 DIY Wood Fired Pizza Oven Kit

Chicago Brick Oven 500 DIY Wood Fired Pizza Oven Kit

 The CBO-500 Outdoor Pizza Oven DIY Kit is a great choice for layouts that require an oven with a smaller footprint. It can easily fit into most outdoor kitchens. Installation is straightforward, but requires some hardscaping experience.

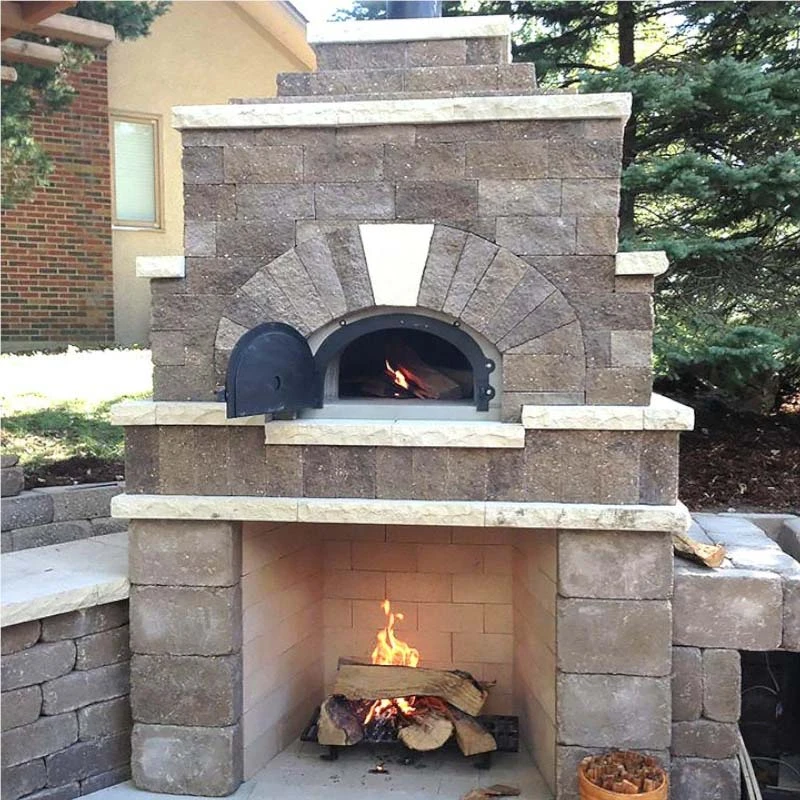

Just choose your style and facing material. Use any combination of stone, in any texture or color, to create a stunning oven that will fit your outdoor kitchen or patio motif. You’re equipped with everything needed to fire up the good life with our signature FlameRoll®.

Your CBO-500 Outdoor Pizza Oven DIY Kit is sure to provide you and your family with endless enjoyment. Assembling a CBO-500 DIY Kit is easy.

FEATURES

• Commercial grade refractory cement interior can hold heat in excess of 1000ºF
• Cook anything in this oven that you would on a grill or a conventional oven
• FlameRoll® technology generates high even temperatures, ensuring a perfect cook every time
• Made in the USA

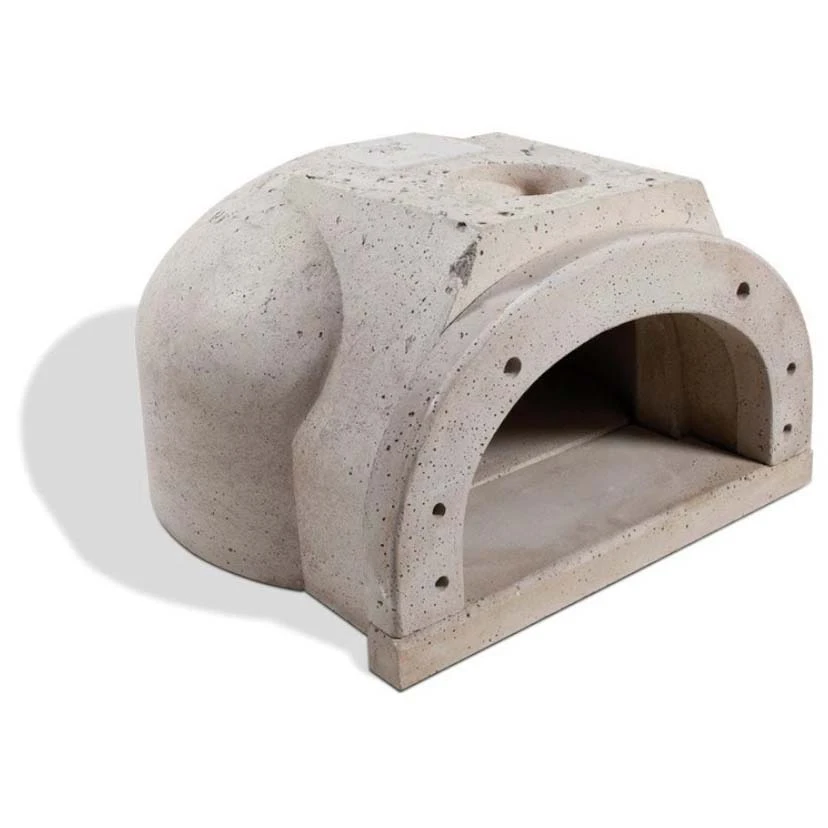

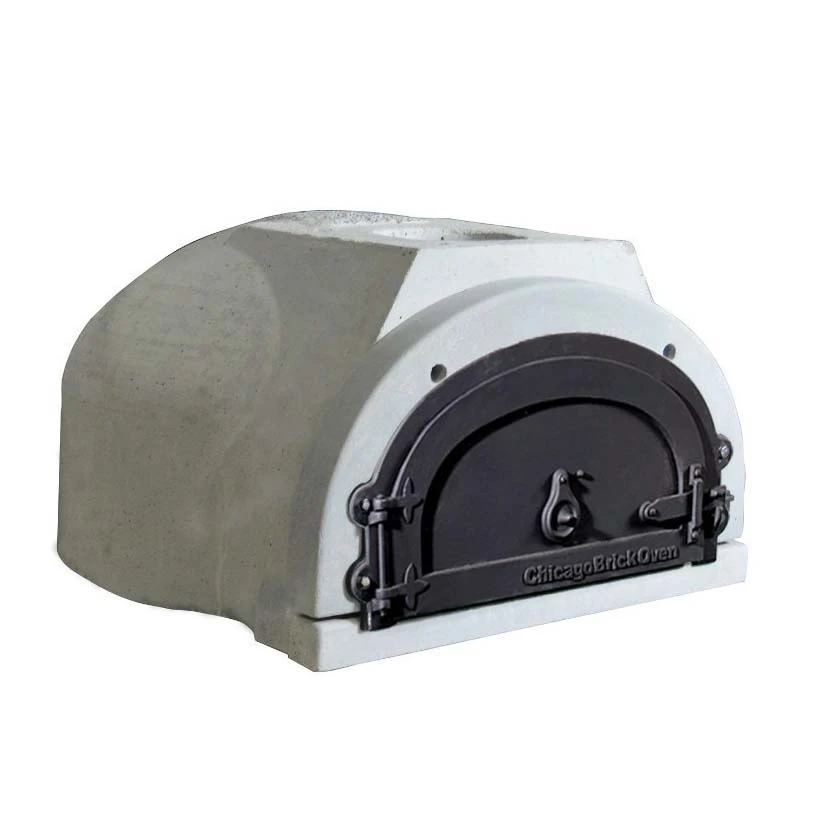

• 5 Piece Oven Included (dome, 2-piece hearth, arch, door)
• 27″ x 22″ cooking surface

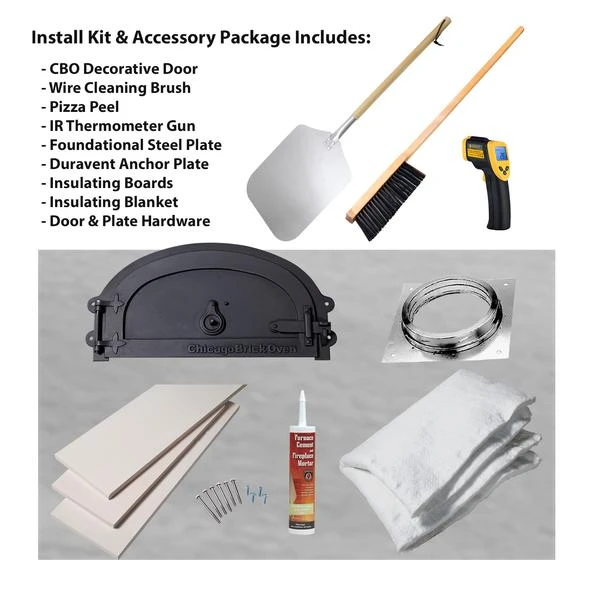

• Install kit includes anchor plate, insulating board & blanket, steel plate, and mortar
• Pizza peel, brush, and infrared thermometer gun included

SPECS

• Weight: 350 lbs
• Overall Dimensions: 34.25″ W × 16″ H × 32.5″ D
• Opening Dimensions: 17″ W x 11.8″ H
• CHIMNEY: this unit comes with a DuraTech 6″ Anchor Plate (Model #6DT-AP) that works with a Class A Stainless Steel DuraTech 6″ Double Wall Pipe (model #6DT-24SS to meet Standard HT103). You can buy this pipe from any building or hearth manufacturer.



A minimum 24-inch pipe section is required. If you are assembling your Chimney at 90,° you can add additional 24-inch sections as required. (The Chimney Pipe cannot have a total bend of more than 30.°) The taller the Flue Stack is, the further away the exhaust is from the cook!
